GENERAL SPECIFICATIONS |
|
|---|---|
| Case Type | General |
| Case Size (L*W*H) mm | 100x54x25 |
| Output Voltage Adjust Mode | Manual |
| Output Voltage Display Mode | LED |
| Output Plug Type | 8 TIP Plug |
| Rated Input Voltage (50Hz/60Hz) | 11¡ã16VDC |
| Vibration Input Frequency Range | N |
| Output Power (max) | 4A |
| Output Current (max ) | 1W |
| Standby Power | 80W |
| Efficiency | 80% |
| Output Voltage(Rating Load Current) | 12,15,16,18,19,20V@4A, 24V@3.34A |
| USB Port Output Voltage(Rating Load Current) | 5VDC@1A |
| Ripple & Noise | 1% |
| Overload Protection | Y |
| Short Circuit Protection | Y |
| Line Regulation | +/-5% |
| Load Regulation | +/-5% |
| Hi-Pot Test | 3000V |
| Hold-up Time | 5ms |
| Operation Temperature | 0 ¡ã 40¢J |
| Operation Humidity | 20%-80% |
| Storage Temperature | -10¡ã70¢J |
| Storage Humidity | 5%¡ã90% |
| MTBF | 50000 Hours |
| Safty | FCC |
| Weight | 310g |
| Applicable for computer Brand | Acer,Asus,Clevo,NEC,Compaq, Dell,HP, IBM,Lenovo,Samsung, Sharp,Sony,Toshiba,LCD Monitor & Protable device or Machines |
| DC PLUG | Plug type : MP-5 A: 6.5X4.3 B: 6.3X3.0 C: 5.5X2.5 D: 5.5X2.1 E: 5.5X1.7 F: 4.75X1.7 G: 4.0X1.7 H: 5.0X3.3 |
MULTI-ADJUSTABLE SWITCHING ADAPTOR
Desktop Cord In / Out with Cigarette Plug
MODEL: TM80-120240-DUC

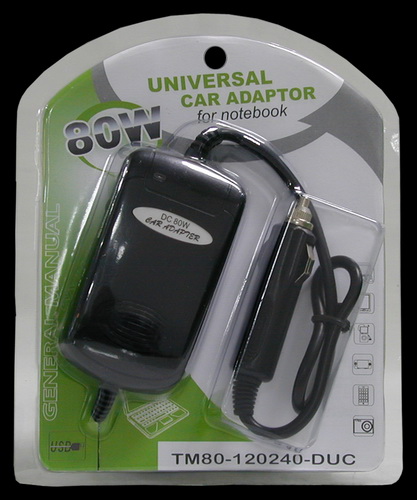

PRODUCT PICTURE &

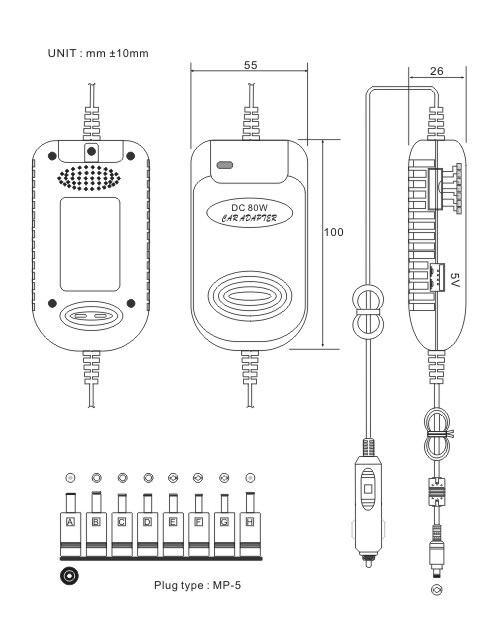

CASE DIMENSION
